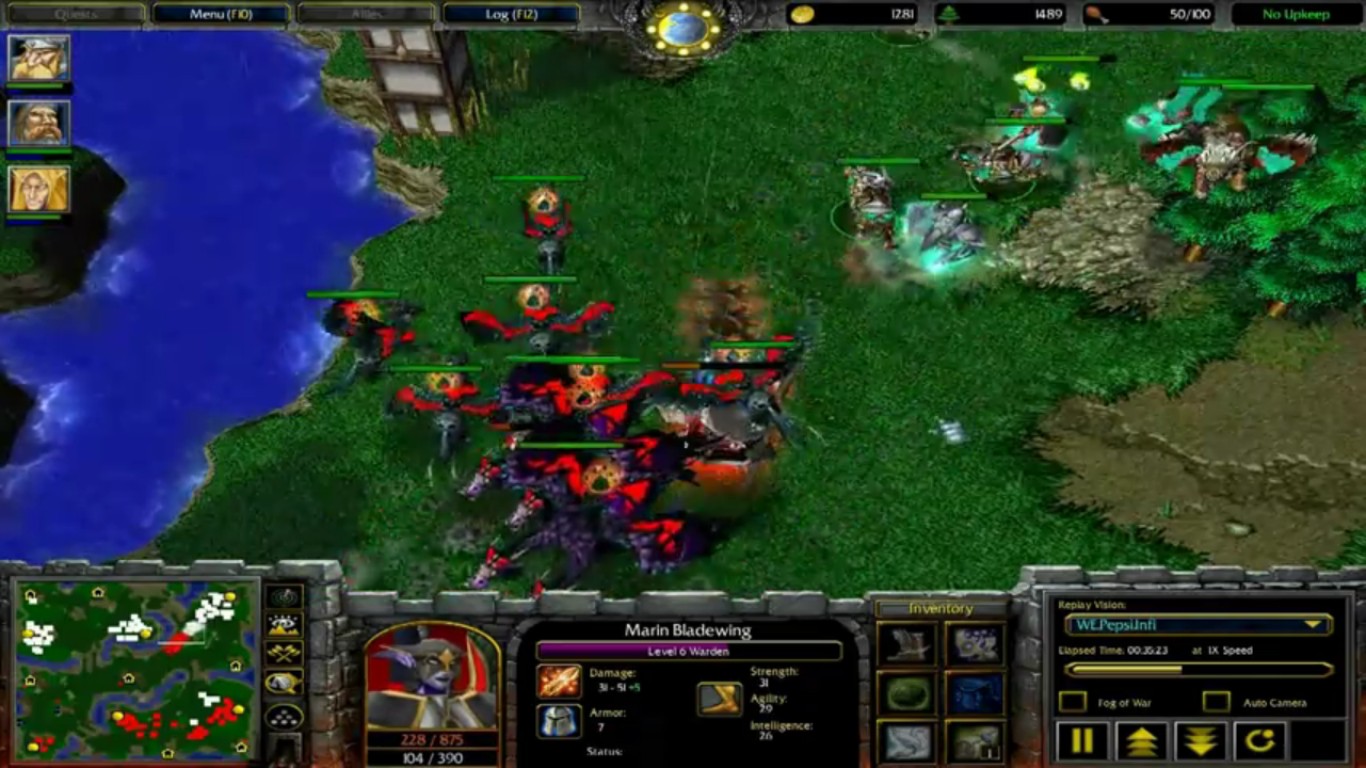

WE.Pepsi.Infi vs WeMadeFOX_Moon 3set 3of6 [ENG]

http://www.youtube.com/watch?v=7O2Zkcr1EEQ&NR=1

#include "stdafx.h"
#include <cv.h>
#include <highgui.h>
#include <cxcore.h>
#include <math.h>
#include <ctype.h>
#include <stdio.h>
int _tmain(int argc, _TCHAR* argv[])
{
// Initialize Kalman filter object, window, number generator, etc
cvNamedWindow( "Kalman", 1 );
CvRandState rng;
cvRandInit( &rng, 0, 1, -1, CV_RAND_UNI );
IplImage* img = cvCreateImage( cvSize(500,500), 8, 3 );
CvKalman* kalman = cvCreateKalman( 2, 1, 0 );
// State is phi, delta_phi - angle and angular velocity
// Initialize with random guess
CvMat* x_k = cvCreateMat( 2, 1, CV_32FC1 );
cvRandSetRange( &rng, 0, 0.1, 0 );
rng.disttype = CV_RAND_NORMAL;
cvRand( &rng, x_k );
// Process noise
CvMat* w_k = cvCreateMat( 2, 1, CV_32FC1 );
// Measurements, only one parameter for angle
CvMat* z_k = cvCreateMat( 1, 1, CV_32FC1 );
cvZero( z_k );
// Transition matrix F describes model parameters at and k and k+1
const float F[] = { 1, 1, 0, 1 };
memcpy( kalman->transition_matrix->data.fl, F, sizeof(F));
// Initialize other Kalman parameters
cvSetIdentity( kalman->measurement_matrix, cvRealScalar(1) );
cvSetIdentity( kalman->process_noise_cov, cvRealScalar(1e-5) );
cvSetIdentity( kalman->measurement_noise_cov, cvRealScalar(1e-1) );
cvSetIdentity( kalman->error_cov_post, cvRealScalar(1) );
// Choose random initial state
cvRand( &rng, kalman->state_post );
// Make colors
CvScalar yellow = CV_RGB(255,255,0);
CvScalar white = CV_RGB(255,255,255);
CvScalar red = CV_RGB(255,0,0);
while( 1 ){
  // Predict point position
  const CvMat* y_k = cvKalmanPredict( kalman, 0 );
  // Generate Measurement (z_k)
  cvRandSetRange( &rng, 0, sqrt( kalman->measurement_noise_cov->data.fl[0] ), 0 );
  cvRand( &rng, z_k );
  cvMatMulAdd( kalman->measurement_matrix, x_k, z_k, z_k );

  // Plot Points
  cvZero( img );
  // Yellow is observed state
  cvCircle( img,
   cvPoint( cvRound(img->width/2 + img->width/3*cos(z_k->data.fl[0])),
   cvRound( img->height/2 - img->width/3*sin(z_k->data.fl[0])) ),
   4, yellow );
  // White is the predicted state via the filter
  cvCircle( img,
   cvPoint( cvRound(img->width/2 + img->width/3*cos(y_k->data.fl[0])),
   cvRound( img->height/2 - img->width/3*sin(y_k->data.fl[0])) ),
   4, white, 2 );
  // Red is the real state
  cvCircle( img,
   cvPoint( cvRound(img->width/2 + img->width/3*cos(x_k->data.fl[0])),
   cvRound( img->height/2 - img->width/3*sin(x_k->data.fl[0])) ),
   4, red );
  cvShowImage( "Kalman", img );
  // Adjust Kalman filter state
  cvKalmanCorrect( kalman, z_k );
  // Apply the transition matrix F and apply "process noise" w_k
  cvRandSetRange( &rng, 0, sqrt( kalman->process_noise_cov->data.fl[0] ), 0 );
  cvRand( &rng, w_k );
  cvMatMulAdd( kalman->transition_matrix, x_k, w_k, x_k );
  // Exit on esc key
  if( cvWaitKey( 100 ) == 27 )
   break;
}
return 0;
}
-----------------------------------------------------------------------

Friday, March 25, 2011

Rectifier

http://en.wikipedia.org/wiki/Rectifier

A rectifier is an electrical device that converts alternating current (AC), which periodically reverses direction, to direct current (DC), which is in only one direction, a process known as rectification.

zener regulator Linear regulator

reduce ripple

Thursday, March 24, 2011

opcv Lucas-Kanade optical flow

----------------------------------------------------------------------------
#include "stdafx.h"
#include <cv.h>
#include <highgui.h>
#include <cxcore.h>
#include <math.h>
#include <ctype.h>
#include <stdio.h>
IplImage *eig_image = NULL, *temp_image = NULL;
const double pi = 3.14159265358979323846;
double square(int a)
{
return a * a;
}
int main(void)
{
IplImage* input_video = cvLoadImage( "C:\\Users\\abc\\Desktop\\IMG_0039.jpg" );
CvSize frame_size;
frame_size.height = input_video->height;
frame_size.width = input_video->width;
IplImage* frame1 = cvCreateImage(frame_size, IPL_DEPTH_8U, 1 );
cvConvertImage(input_video, frame1, CV_CVTIMG_FLIP);
CvPoint2D32f frame1_features[400];
CvPoint2D32f frame2_features[400];
int number_of_features=400;
cvGoodFeaturesToTrack(frame1, eig_image, temp_image, frame1_features, &number_of_features, .01, .01, NULL);
char optical_flow_found_feature[400];
float optical_flow_feature_error[400];
CvTermCriteria optical_flow_termination_criteria = cvTermCriteria( CV_TERMCRIT_ITER | CV_TERMCRIT_EPS, 20, 0.3 );
IplImage* input_video1 = cvLoadImage( "C:\\Users\\abc\\Desktop\\IMG_0040.jpg" );
IplImage* frame2 = cvCreateImage(frame_size, IPL_DEPTH_8U, 1 );
cvConvertImage(input_video1, frame2, CV_CVTIMG_FLIP);
IplImage *pyramid1 = cvCreateImage( frame_size, IPL_DEPTH_8U, 1 );
IplImage *pyramid2 = cvCreateImage( frame_size, IPL_DEPTH_8U, 1 );
CvSize optical_flow_window = cvSize(3,3);
cvCalcOpticalFlowPyrLK(frame1, frame2, pyramid1, pyramid2, frame1_features,
        frame2_features, number_of_features, optical_flow_window, 5,
        optical_flow_found_feature, optical_flow_feature_error,
        optical_flow_termination_criteria, 0 );
for(int i = 0; i < number_of_features; i++)
{
if ( optical_flow_found_feature[i] == 0 ) continue;
int line_thickness = 10;
CvScalar line_color = CV_RGB(255,0,0);
CvPoint p,q;
p.x = (int) frame1_features[i].x;
p.y = (int) frame1_features[i].y;
q.x = (int) frame2_features[i].x;
q.y = (int) frame2_features[i].y;
double angle = atan2( (double) p.y - q.y, (double) p.x - q.x );
double hypotenuse = sqrt( square(p.y - q.y) + square(p.x - q.x) );
q.x = (int) (p.x - 3 * hypotenuse * cos(angle));
q.y = (int) (p.y - 3 * hypotenuse * sin(angle));
cvLine( frame1, p, q, line_color, line_thickness, CV_AA, 0 );
p.x = (int) (q.x + 9 * cos(angle + pi / 4));
p.y = (int) (q.y + 9 * sin(angle + pi / 4));
cvLine( frame1, p, q, line_color, line_thickness, CV_AA, 0 );
p.x = (int) (q.x + 9 * cos(angle - pi / 4));
p.y = (int) (q.y + 9 * sin(angle - pi / 4));
cvLine( frame1, p, q, line_color, line_thickness, CV_AA, 0 );
}
cvNamedWindow( "Optical Flow", 0 );
cvShowImage("Optical Flow", frame1);
int p[3]; p[0] = CV_IMWRITE_JPEG_QUALITY; p[1] = 100; p[2] = 0; cvSaveImage("out2.jpg", frame1, p);
cvNamedWindow( "Optical Flow1", 0 );
cvShowImage("Optical Flow1", frame2);
cvWaitKey(0);
}
------------------------------------------------------------------------------

cvCalcOpticalFlowFarneback

#include "stdafx.h"
#include <cv.h>
#include <highgui.h>
#include <cxcore.h>
#include <math.h>
#include <ctype.h>
#include <stdio.h>
IplImage *image = 0, *grey = 0, *prev_grey = 0, *pyramid = 0, *prev_pyramid = 0, *swap_temp;
int win_size = 10;
const int MAX_COUNT = 500;
CvPoint2D32f* points[2] = {0,0}, *swap_points;
char* status = 0;
int count = 0;
int need_to_init = 0;
int night_mode = 0;
int flags = 0;
int add_remove_pt = 0;
CvPoint pt;
int main()
{
int scale = 5;
    cvNamedWindow("vel", 1);
    cvNamedWindow("image1", 1);
    cvNamedWindow("image2", 1);
CvSize isize = cvSize(80,80);
CvSize vsize = cvSize(isize.width * scale, isize.height * scale);
IplImage *image1 = cvCreateImage(isize, 8, 1 );
IplImage *image2 = cvCreateImage(isize, 8, 1 );
IplImage *velx = cvCreateImage(isize, IPL_DEPTH_32F, 1);
IplImage *vely = cvCreateImage(isize, IPL_DEPTH_32F, 1);
IplImage *vel = cvCreateImage(vsize, 8, 3);
    IplImage *flow = cvCreateImage(isize, IPL_DEPTH_32F, 2);
int sim = 0;
    for (;;)
    {
  if (sim * 4 > isize.width*3 /4)
   sim = 0;
  CvPoint pts1 = {sim * 1, 30};
  CvPoint pts2 = {pts1.x + 4, pts1.y + 4};
  cvZero(image1);
  cvRectangle(image1, pts1, pts2, CV_RGB(255, 255, 255), -1);
  pts1.x += 1;
  pts2.x += 1;
  cvZero(image2);
  cvRectangle(image2, pts1, pts2, CV_RGB(255, 255, 255), -1);
  sim++;
#if 0
  cvCalcOpticalFlowLK(image1, image2, cvSize(5,5), velx, vely);
#else
#if 1
        cv::Mat im1 = cv::cvarrToMat(image1), im2 = cv::cvarrToMat(image2);
        cv::Mat _flow = cv::cvarrToMat(flow);
        cv::calcOpticalFlowFarneback( im1, im2, _flow, 0.5, 2, 5, 2, 7, 1.5, cv::OPTFLOW_FARNEBACK_GAUSSIAN);
#else
        //cvCalcOpticalFlowFarneback(image1, image2, flow, 0.5, 1, 5, 2, 7, 1.5, 0);
        icvCalcOpticalFlowBBW( im1, im2, _flow, 1, 1, 1, 0 );
#endif
        {
            for( int y = 0; y < flow->height; y++ )
            {
                float* vx = (float*)(velx->imageData + velx->widthStep*y);
                float* vy = (float*)(vely->imageData + vely->widthStep*y);
                const float* f = (const float*)(flow->imageData + flow->widthStep*y);
                for( int x = 0; x < flow->width; x++ )
                {
                    vx[x] = f[2*x];
                    vy[x] = f[2*x+1];
                }
            }
        }
#endif
  CvPoint2D64f ave = {0,0};
  cvZero(vel);
  pts1.x *= scale;
  pts1.y *= scale;
  pts2.x *= scale;
  pts2.y *= scale;
  cvRectangle(vel, pts1, pts2, CV_RGB(255, 255, 255), 1);
  for (int y = 0; y < image1->height; y++)
   for (int x = 0; x < image1->width; x++)
   {
    double dx = cvGetReal2D(velx, y, x);
    double dy = cvGetReal2D(vely, y, x);
    CvPoint p = cvPoint(x * scale, y * scale);
    cvLine(vel, p, p, cvScalar(170,170,170));
    ave.x += dx;
    ave.y += dy;
    double l = sqrt(dx*dx + dy*dy);
    if (l > 0)
    {
     CvPoint p2 = cvPoint(p.x + (int)(dx * 10 + .5), p.y + (int)(dy * 10 + .5));
     cvLine(vel, p, p2, CV_RGB(0,255,0), 1, 8);
    }
   }
  cvShowImage("vel", vel);
  cvShowImage("image1", image1);
  cvShowImage("image2", image2);
  printf("ave=(%.2f,%.2f)\n", ave.x, ave.y);
        if( cvWaitKey(300) == 'q' )
            break;
    }
    return 0;
}
